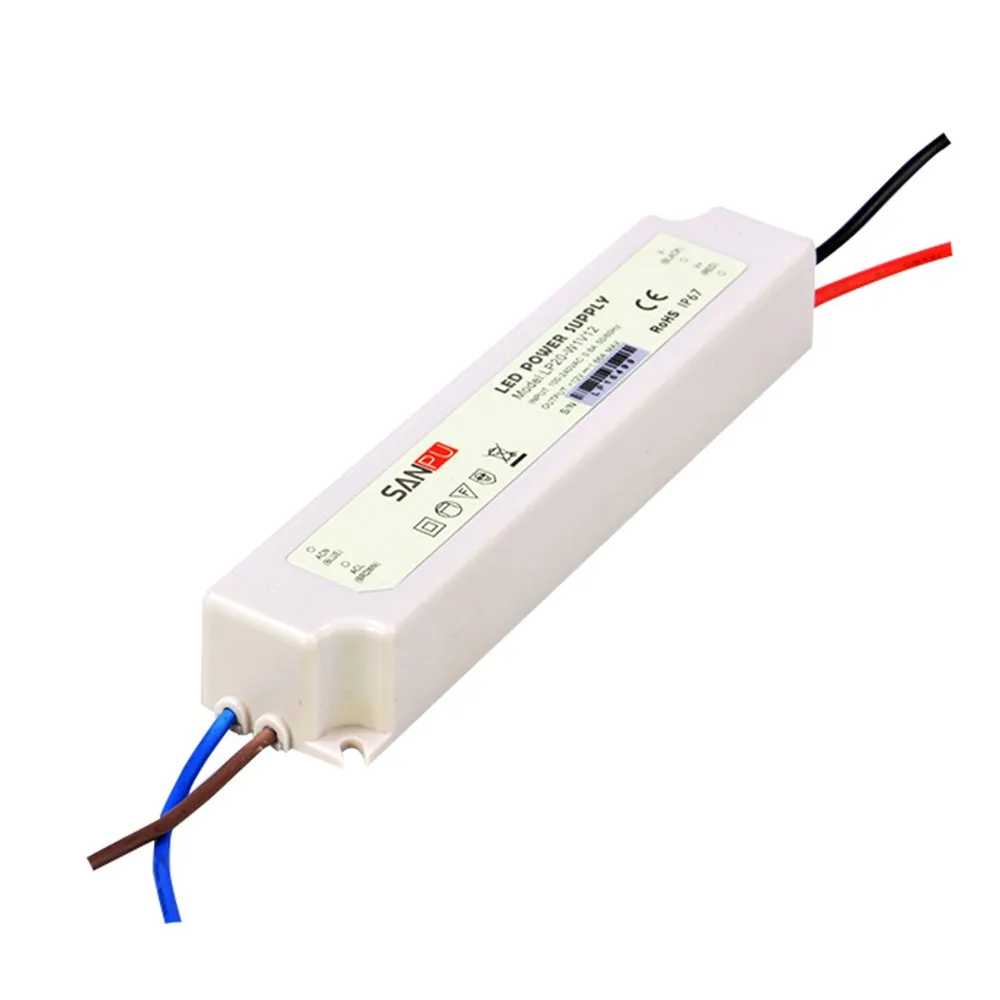

20w Led Driver Power Supply 12v DC CCTV Power Supply IP67 Ranking for Outdoor & Indoor Using ~ SANPU

Product Description

universal AC input

Protections: short circuit, over load, over temp, over voltage

Build-in EMI filter with tiny ripple

100%full load burn-in test

Small volume high-efficiency

Conform to EN60950 GB4943 UL60950 safety standards

Conform to GB9254, EN55022,EMC standards

AC input voltage range	85~264VAC
Input current	0.5A/110V, 0.28A/230V
Input frequency	47~63Hz
Inrush current	cold start, 30A/230V
Input leakage current	< 0.5mA/240VAC
Output voltage adjust range	±10%rated output voltage
Output overload protection	115-~135%, hiccup mode, auto recovery
Output over temp protection	≥ 105%°C , cut off the out put, auto recovery
Withstand voltage	I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
Operating temperature	-20°C ~+60°C
Operating humidity	20%~90%
packing	100pcs/15kg
size	1453022
weight	0.15kg/pcs
waterproof	IP67
