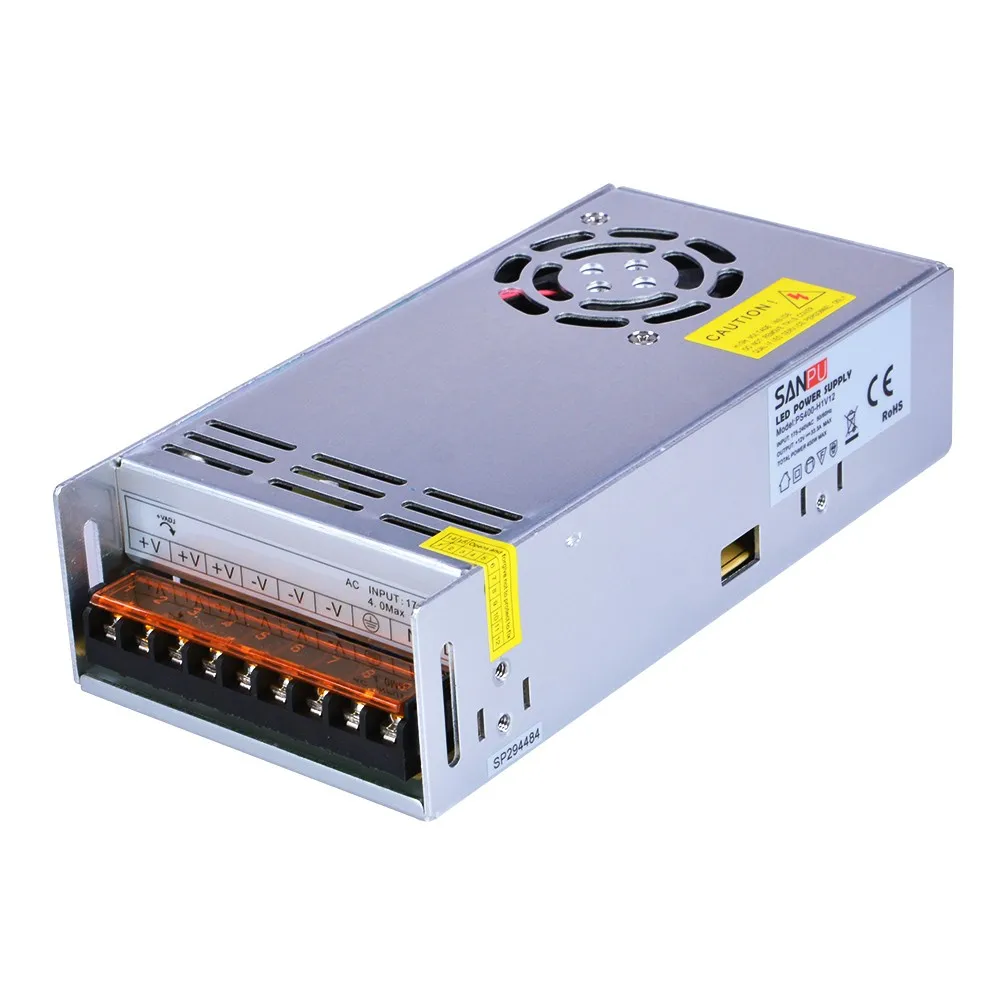

Sanpu 400w Led Driver High Power 12v/24/v/48v High Variable Voltage Switching Power Supply ~ SANPU

Product Description

Model		PS400-H1V	PS400-H1V	PS400-H1V	PS400-H1V
output	DC voltage	12V	15V	24V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%
	Current range	0~33A	0~26.6A	0~16.6A	0~8.3A
	Rated power	350W	350W	350W	350W
	DC voltage ADJ.range	-9%~+10%	±10%	±10%	±10%
input	Voltage range	180~264VAC(selected by switch)
	frequency	47~63HZ
	AC current	4.5A/230VAC
	efficiency	81%	82%	82%	84%
	Inrush current	Cold start current 50A/230V
	Leakage current	< 3.5mA/240VAC
protection	overload	Rated output power105%~135% start over load protection
		protection type:hiccup mode,auto-recovery
	over -voltage protection	115%-135% cutoff output , auto-recovery
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,UL60950
	Weight/packing/size	0.68kg/36pcs/2.45kg/2009950(mm)
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

Photos Overview

Company Information

Certifications

Packaging & Shipping

Our Services

SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS

1. What we sell is 100% tested before shipping out;

2. Small quantity orders acceptable;

3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;

4. We have larger stocks and this support us can make a very prompt shipping;

5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;

6. Price could be negotiated for more and large quantity;

7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
