China Manufacture 8 Years Experience Sanpu 100w AC to DC 100v-240v Long Strip Switching Power Supply ~ SANPU

Product Description

1. High efficiency

2. The product consists of indoor type and outdoor type.

3. Convenient wiring.

4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .

5. Various types for your choice:Constant Voltage and Constant Current Power supply

6. Quality assurance: 2 years warranty.

7.ac dc power supply .

8.International AC input

9.Built-in EMI fiter

10.100% full load burn-in test

L Strip type L100-W1V
MODEL		5V 100W	12V 100W	15V 100W	24V 100W	27V 100W	48V 100W
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	27V	48V
	RATED CURRENT	20A	8.5A	6.7A	4.5A	3.7A	2A
	CURRENT RANGE	0~20A	0~8.5A	0~6.7A	0~4.5A	0~3.7A	0~2A
	RATED POWER	100W	100W	100W	100W	100W	100W
	RIPPLE& NOISE (MAX.)NOTE2	100mV	120mV	120mV	120mV	120mV	200mV
	VOLTAGE TOLERANCENOTE3	±2%	±1%	±1%	±1%	±1%	±1%
	SETUP , RISE TIME	200ms/220VAC 50ms/220VAC
	HOLD UP TIME(Typ.)	20ms/220VAC
INPUT	VOLTAGE RANGE	85~132VAC 170~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	PF>0.6/220VAC
	EFFICIENCY(Typ.)	81%	84%	85%	85%	86%	86%
	AC CURRENT(Typ.)	1.8A/115VAC 1A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 20A/115V 40A/230VAC
PROTECTION	Short circuit	Protection type : recovers automatically after fault condition is removed
	Over load	105~150% hiccup mode , auto-recovery
	Over voltage	115%~135% Cut off the output , auto-recovery
ENVIRONMENT	WORKING TEMP	-20°C~ +60°C
	WORKING HUMIDITY	20%~90%RH
	STORAGE TEMP , HUMIDITY	-40°C~+85°C,10%~90%RH
SAFETY &EMC	SAFETY STANDARDS	CE,ROHS
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC Test Standards	Conform to EN60950 GB4943 UL60950 Safety standards
	EMC Test Standards	Conform to GB9254 EN55022 EMC standards
NOTE	1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr . 3.Tolerance : includes set up tolerance , line regulation and load regulation .

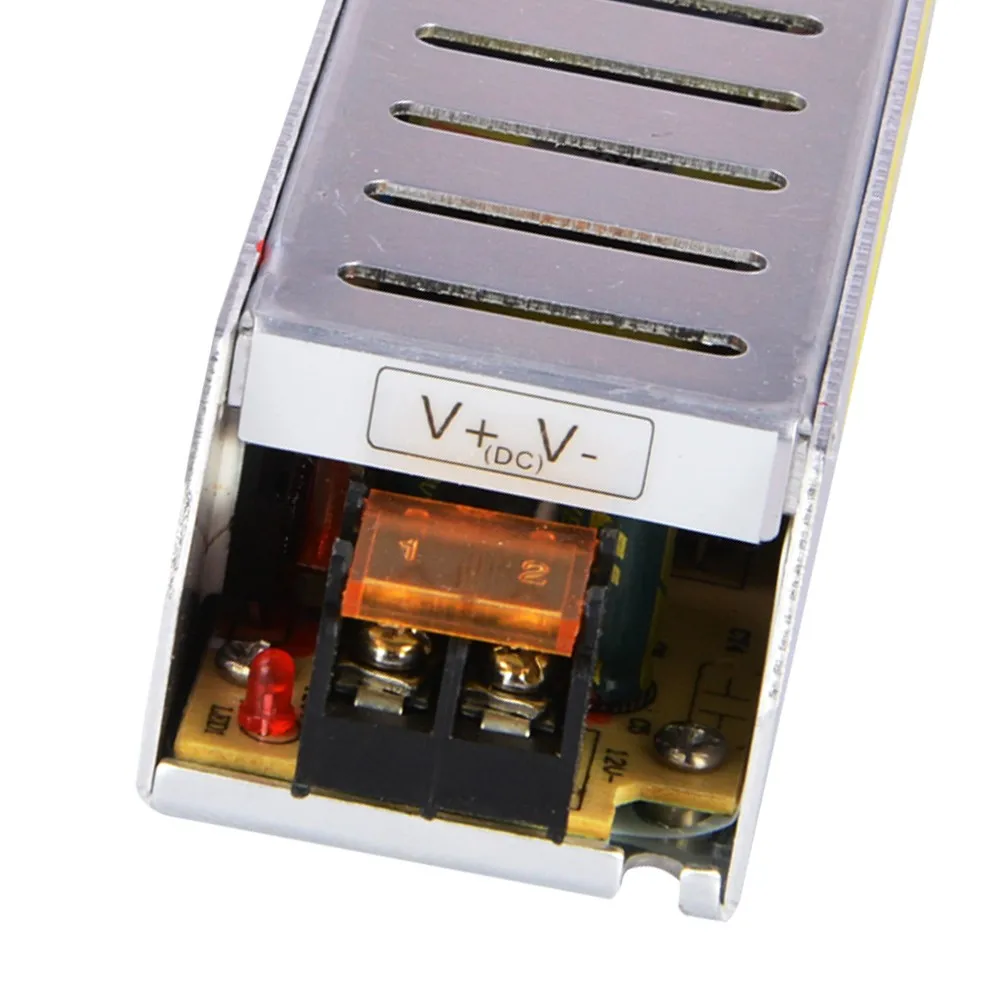

Photos Overview

Company Information

Certifications

Packaging & Shipping

Our Services

SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS

1. What we sell is 100% tested before shipping out;

2. Small quantity orders acceptable;

3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;

4. We have larger stocks and this support us can make a very prompt shipping;

5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;

6. Price could be negotiated for more and large quantity;

7. Your enquiry will be quickly responsed.
