Specifications
1.60w 110v ac to 24v dc power supply
2.100% full load burn-in test
3.Small- volume high-efficiency
4.Two years warranty
2.100% full load burn-in test
3.Small- volume high-efficiency
4.Two years warranty
Features
60w 110v ac to 24v dc power supply
universal AC input
Protections: short circuit, over load, over temp, over voltage
Build-in EMI filter with tiny ripple
100%full load burn-in test
Small volume high-efficiency
Conform to EN60950 GB4943 UL60950 safety standards
Conform to GB9254, EN55022,EMC standards
AC input voltage range
|
85~264VAC 47~63Hz
| ||||
Input current
|
1.2A/110V 0.7A/230V
| ||||
AC inrush current
|
Cold-start current 36A/230V
| ||||
Leakage current
|
<1mA/240VAC
| ||||
DC adjustable range
|
±10% rated output voltage
| ||||
Over load protection
|
105~135% hiccup mode, auto-recovery
| ||||
Setup, rise, hold up time
|
200ms, 100ms, 20ms
| ||||
Withstand voltage
|
I/P- O/P: 1.5KVAC 1 minute
I/P- FG: 1.5KVAC 1 minute
O/P- FG: 0.5KVAC 1minute
| ||||
Working temperature
|
-20 °C ~+60°C, 20%~90%RH
| ||||
Weight/ packing/ size
|
0.2Kg, 80pcs/16Kg, 160*40*32(mm)
| ||||
Model
|
Output
|
Error
|
Range
|
Efficiency
| |
L 60- W1V5
|
5V
|
0~12A
|
± 2%
|
80mv
|
81%
|
L 60- W1V12
|
12V
|
0~5A
|
± 1%
|
100mv
|
84%
|
L 60- W1V15
|
15V
|
0~4A
|
± 1%
|
100mv
|
85%
|
L 60-W1V24
|
24V
|
0~2.5A
|
± 1%
|
150mv
|
86%
|
Parameter of 60w 110v ac to 24v dc power supply
CE & ROHS
Packing

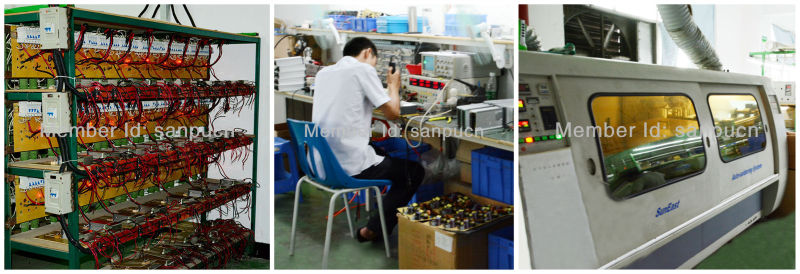

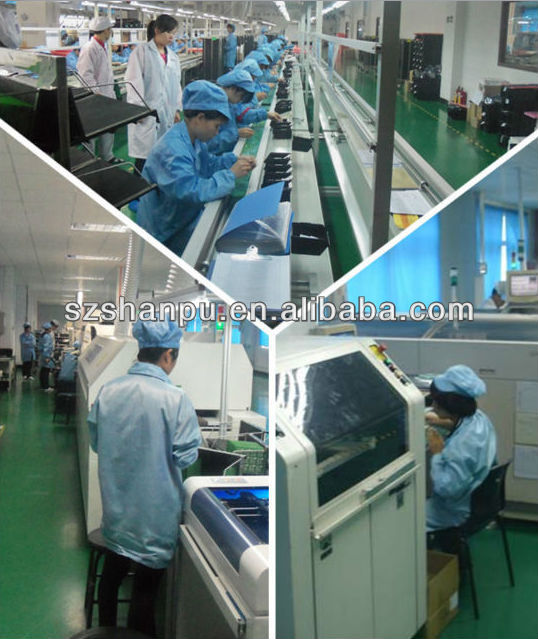

Processing Workshop

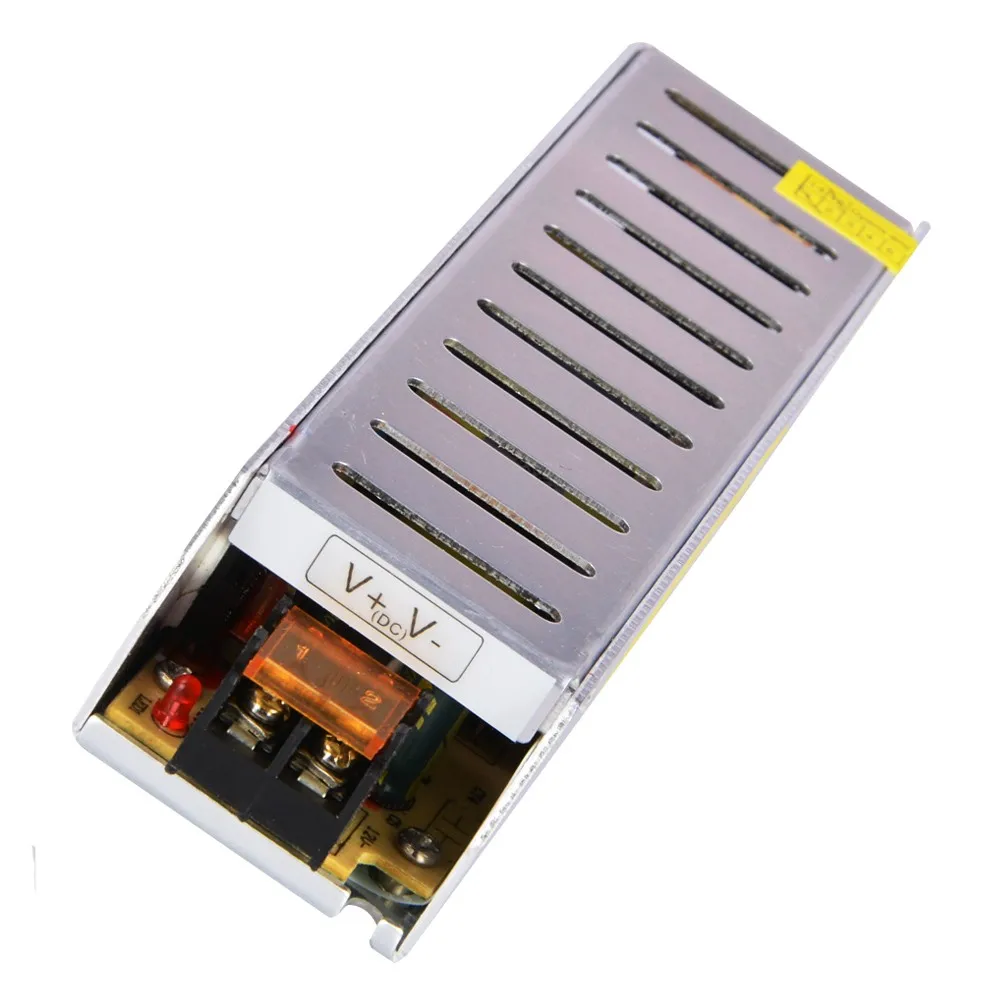

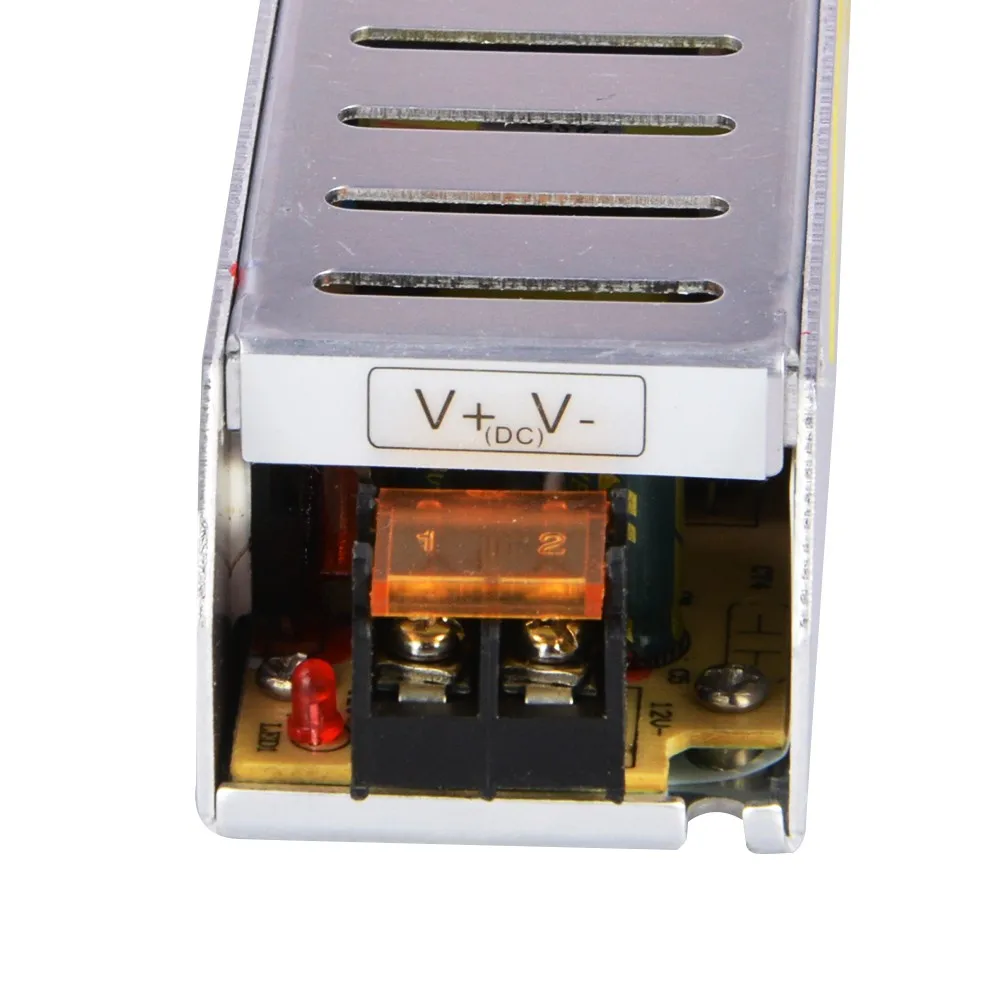

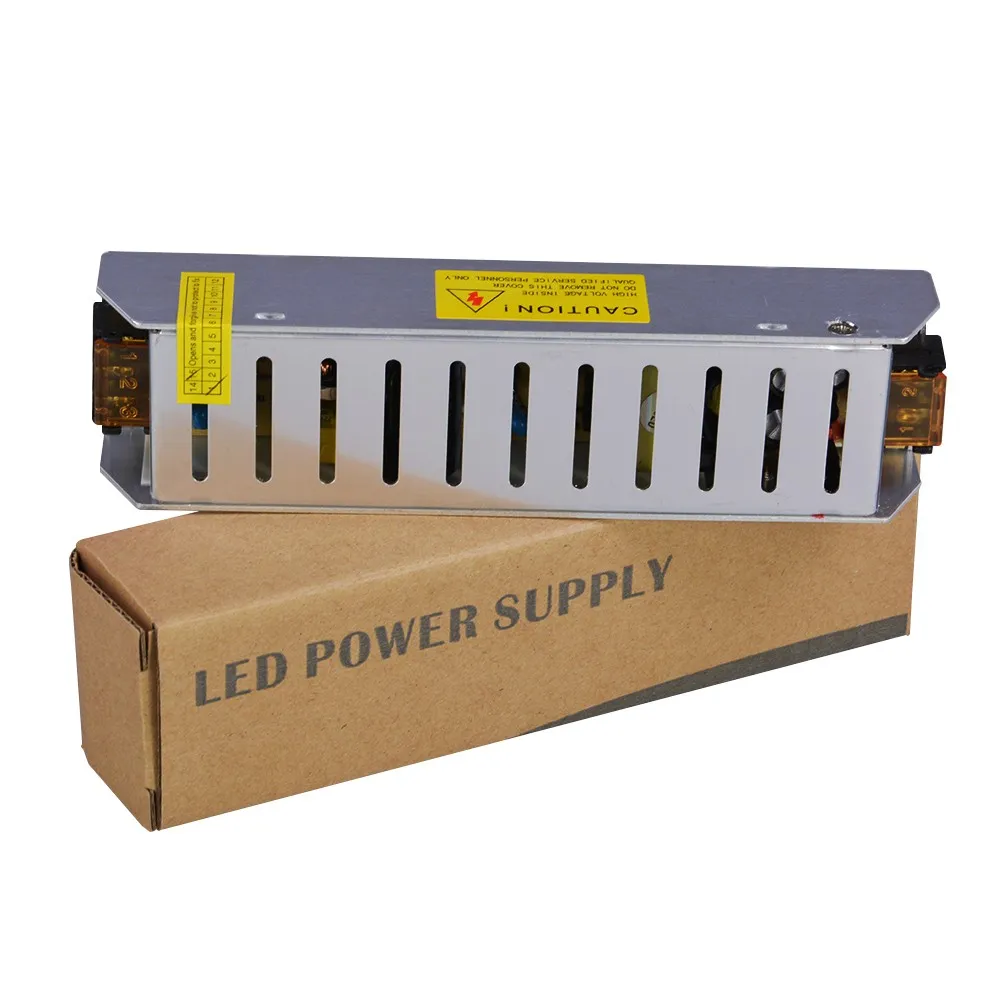

60w 110v ac to 24v dc power supply
Our Advantages
1, 8 years focus on the LED Power Supply Research and development, Production;
2, Providing service for 3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
3,High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 3000 customers;
4, For control the quality, we made the transformer by our own factory, this also for the power supply can bestable and reliable;
5,Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
6,After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
7,Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock.
