Product Description
Features:

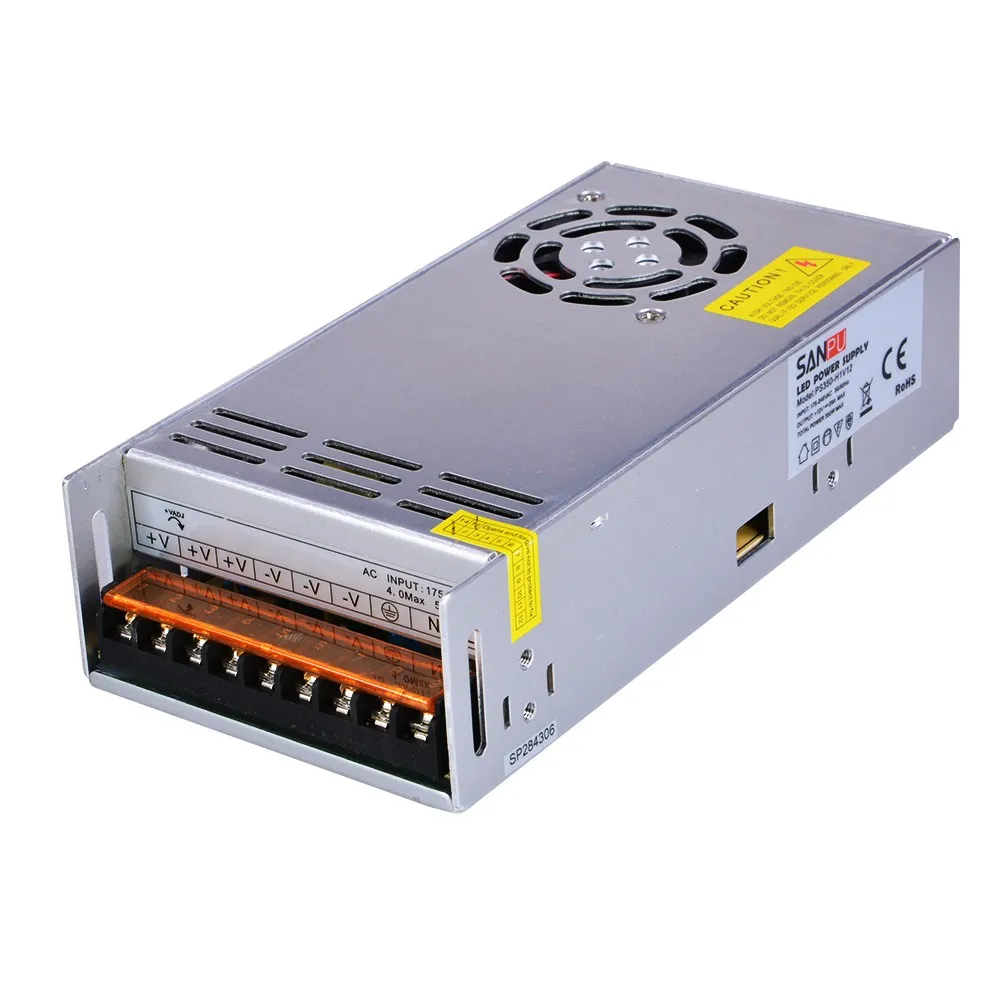

1. SANPU CE ROHS 350w 24v dc switching power supply.
2. The product consists of indoor and outdoor type.
3. Convenient wiring.
4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .
5. Various types:Constant Voltage and Constant Current Power supply.
6. Quality assurance: 2 years warranty.
7. High efficiency .
8. International AC input .
9. Built-in EMI fiter .
10.100% full load burn-in test .
| MODEL | 5V350W | 12V350W | 15V350W | 24V350W | 27V350W | 48V350W | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 70A | 29A | 23.2A | 14.6A | 13A | 7.3A | |
| CURRENT RANGE | 0~70A | 0~29A | 0~23.2A | 0~14.6A | 0~13A | 0~7.3A | |
| RATED POWER | 350W | 350W | 350W | 350W | 350W | 350W | |
| RIPPLE& NOISE (MAX.)NOTE2 | 150mV | 150mV | 150mV | 150mV | 150mV | 200mV | |
| VOLTAGE TOLERANCENOTE3 | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| SETUP , RISE TIME | 200ms/220VAC 50ms/220VAC | ||||||
| HOLD UP TIME(Typ.) | 20ms/220VAC | ||||||
| INPUT | VOLTAGE RANGE | 85~132VAC/170~264VAC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| POWER FACTOR(Typ.) | PF>0.6/220VAC | ||||||
| EFFICIENCY(Typ.) | 80% | 83% | 83% | 84% | 85% | 86% | |
| AC CURRENT(Typ.) | 5.6A/115VAC 2.8A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | ||||||
| PROTECTION | Short circuit | Protection type : recovers automatically after fault condition is removed | |||||
| Over load | 105~135% hiccup mode , auto-recovery | ||||||
| Over voltage | 115%~135% Cut off the output , auto-recovery | ||||||
| ENVIRONMENT | Over temperature | Rectifier ≥105°C cut off the output , auto-recovery | |||||
| WORKING TEMP | -20°C~ +60°C | ||||||
| WORKING HUMIDITY | 20%~90%RH | ||||||
| SAFETY &EMC | STORAGE TEMP , HUMIDITY | -40°C~+85°C,10%-90%RH | |||||
| SAFETY STANDARDS | CE,ROHS | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
| EMC Test Standards | EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006: | ||||||
| EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006 | |||||||
| NOTE | 1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr . 3.Tolerance : includes set up tolerance , line regulation and load regulation . | ||||||
Photos Overview
Company Information
Certifications
Packaging & Shipping
Our Services
SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1. What we sell is 100% tested before shipping out;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
